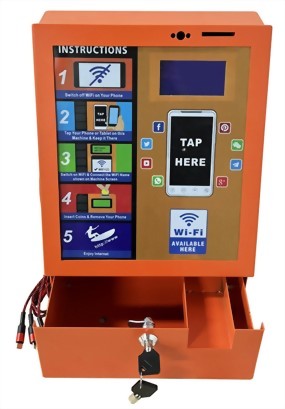

• Public WiFi Hotspot pay terminal by Bank Note

Public WiFi Hotspot pay terminal by Bank Note

Model : A800

Public WiFi Hotspot pay terminal by Bank Note brings a brand-new vending business into public market. It provides visitors an immediate WiFi Internet hotspot service charged by time or traffic data.

Everyone has a smartphone, but not everywhere have WiFi. WiFi Vending Machine can fill this huge gap between WiFi needs and WiFi Coverage, and offer you a new way to gain revenue easily.

The machine is plug-&-play and easy to install. And the best part is all investment can be returned in 3 months.


-        No inquiry, no username, and no password are required; just tap the phone, insert banknotes, and get WiFi.

-        Provide big WiFi signal range (around 100 meters for outdoor / 30 meters for indoor).

-        Support around 50 concurrent users (depending on the bandwidth of Internet access) and optional high-end version can support up to 500 concurrent users.

-        No need for supervision. Self-service working method to save labor cost.

-        Provide user-friendly pop-up instruction page to tell end users how to get WiFi service.

-        Offer cloud-based NMS (Network Management System) to monitor all online machines remotely.

-        Support account roaming between different machines to help end users enjoy your WiFi service in multiple sites.



-        Venue owners can get extra revenue by providing WiFi hotspot service and attract more visitors which is good for his original business;

-        Venue owners can display advertisements for their products on the login page for better promotion, or show ads for other shops to get income;

-        No WiFi squatter or hacker to stole Internet because no username and password is required.

-        Travelers can get quick and cheap Internet access without paying expensive charge for data roaming or new SIM card;

-        Visitors can check/send email, browse websites, and watch videos from any WiFi-enabled smart mobile phone, tablet, laptop, or handheld device.


Suited for indoor, outdoor or storefront public environment, such as:

-        Long-stay place: dormitories, apartments, hotels, hospitals;

-        Crowed public place: stations, food centers, restaurants, coffee shops, pubs, lounge bars, Karaoke bars, beauty salons, chain shops, lobby of banks/hotels;

-        Sports area and recreation centers: bowling, billiards, swimming pools;

-        Tourism place: international airports, beaches, parks, plazas, exhibition and convention sites.

optional add-ons

Cellphone Charging Box

-        Can get extra income by selling power charging service

-        Input Voltage: AC100~240V 50/60Hz

-        Output Voltage: DC5V

-        Output Current: 2A

-        Charging Cable: 4 x 1 meter

-        Connector Type: IOS + Micro USB + Type C, 3 in 1

-        Casing Material: ABS plastic

-        Dimensions: 222mm (L) x 146mm (W) x 56 mm (H)

-        Weight: 0.9 kg

Electronic Ticket Vending Function

-        Can be used to sell all kinds of ticket and recharge voucher (for example, recharging electricity meter, mobile airtime)

-        Requirement: you can get the list of tickets or voucher codes from the ticket supplier

-        The ticket/voucher code will be displayed on pop-up web page, and can be checked at a specific website

Local Video Sharing Solution

-        Add a new way to get revenue by sharing local videos based on time

-        Can save Internet bandwidth and provide high-speed video service

-        Built-in mini computer board with SDD hard disk of 120 GB to easily store big volume of videos

Access Point (WiFi Extender)


-        Can extend the wifi signal range to attract more users

-        Work in dual-band: 2.4 & 5 GHz

-        Support PoE in

-        Provided with waterproof casing and cable outlet (optional)

-        Shall connect to machine via Ethernet cable

-        Approximate extended range (* it will vary with actual installation environment): around 100 meters (outdoor) / 30 meters (indoor)

-        Dimensions: 190mm (H) x 100 mm (W) x 44mm (D)

-        Weight: 0.3 kg


Environmental Conditions

-       Temperature: 5°C to 45°C (operation) / -10°C to 60°C (storage)

-       Humidity: 10% ~ 85% non-condensing

-       Shall work in bright environment

Power Requirement

-       External adaptor (input: 100~240 VAC, 50/60 Hz / output: 12~24VDC, 0.8A)

-       Power consumption: 6 watts

-       Support solar power supply

WiFi Operation Range

Radius up to 100 meters (outdoor) / 30 meters (indoor)

WiFi Frequency Range

BAND 2.412 to 2.484 GHz and 5.150 to 5.875 GHz

Supported 4G Frequency Bands (optional)

LTE FDD: 700/800/850/900/1700/1800/1900/2100/2600MHz

Supported Max. 4G Data Speed (optional)

LTE FDD: Cat4 Download: 150Mbps / Upload: 50Mbps @20M BW

Supported Device for Tapping

Any WiFi-enabled mobile phone, tablet, laptop, PSP, PDA, etc.


-       IEEE 802.11 b/g/n and 802.11 a/ac Wireless LAN

-       Zero end-user configurations


Built-in user authentication and accounting

Remote Management via NMS (optional)

-       Setting of WiFi name, WiFi service price, data speed limit

-       Revenue records of WiFi Internet service

-       Offer voucher codes for long-term wifi service

-       Supervision on running status of each machine

About Banknote Acceptor

-       Can accept most bills in the world

-       With LED at front to indicate status

-       Do not support giving changes

Supported Language

English, Spanish, and French are available (other languages can be customized)


-       Housing Material: steel plate

-       WAN Interface: 1x RJ45 port or 4G module (optional)

-       Antennas: 1x WiFi (internal, 2.4GHz+5GHz dual-band) or 1x 4G (external, optional)

-       Dimensions: 200mm (W) x 200mm (D) x 310mm (H)

-       Weight: 5.0kg

-       Packing Dimensions: 260mm (W) x 260mm (D) X 370mm (H)

-       Packing Weight: 5.45 kg
