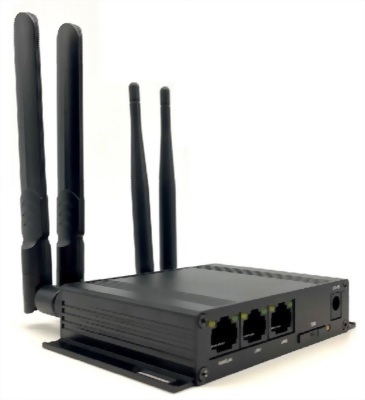

MaxComm 4G LTE Industry Modem Router M-120

Model : M-120

MaxComm M-120 Cellular industrial router is a wireless communication product developed based on 4G LTE network requirements. Supports 2G/3G/4G LTE global frequency bands. Supports 4G LTE CAT 4 Internet access. The maximum downlink bandwidth of 4G LTE is 150Mbps, and the maximum uplink bandwidth is 50Mbps. Supports

1 channel RS485 or RS232 for transparent IP packet transmission or data acquisition. Supports for 2.4GHz WIFI function to meet the access and sharing needs of more than 30 users WIFI hotspots. Supports GPS positioning function, which is convenient for users to monitor operation and maintenance. It meets the application design of industrial harsh environment, and is suitable for wide access and data transmission in industrial application scenarios.

SPECIFICATIONS

Cellular feature

2G/3G/4G LTE

data connectivity

It provides data connectivity on LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA networks.

2G/3G/4G LTE

Frequency bands

Version C

LTE-FDD. B1, B3, B5, B8

LTE-TDD. B38, B39, B40, B41 WCDMA. B1, B8 GSM.900/1800MHz

Version E.

LTE FDD: B1/B3/B5/B7/B8/B20,B28A LTE TDD: B38/B40/B41

WCDMA: B1/B8 GSM: B3/B8

Version A.

LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71 WCDMA: B2/B4/B5

Version AU.

LTE FDD: B1/B2①/B3/B4/B5/B7/B8/B28 LTE TDD: B40

WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8

Version J

LTE FDD: B1/B3/B8/B18/B19/B26 LTE TDD: B41

WCDMA: B1/B6/B8/B19

Remarks. More frequency bands requirements,please contact us.

2G/3G/4G LTE

Data rates

LTE.

LTE FDD: Max 150Mbps (DL)/Max 50Mbps (UL) LTE TDD: Max 130Mbps (DL)/Max 30Mbps (UL)

UMTS.

DC-HSDPA: Max 42Mbps (DL) HSUPA: Max 5.76Mbps (UL)

WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL)

GSM.

EDGE: Max 296Kbps (DL)/Max 236.8Kbps (UL) GPRS: Max 107Kbps (DL)/Max 85.6Kbps (UL)


LTE features

  Support up to CAT 4.

  Support 1.4 to 20MHz RF bandwidth.

  Support MIMO in DL direction

  FDD. Max 50Mbps (UL), 150Mbps (DL)

  TDD. Max 35Mbps (UL), 130Mbps (DL)

UMTS features

  Supports 3GPP R8 DC-HSPA+

  Supports 16-QAM, 64-QAM and QPSK modulation

  3GPP R6 Cat 6 HSUPA: Max 5.76Mbps (UL)

  3GPP R8 Cat 24 DC-HSPA+: Max 42Mbps (DL)

GSM/GPRS features

R99:

CSD: 9.6kbps, 14.4kbps

GPRS:

  Support GPRS multi-slot class 12 (12 by default)

  Coding scheme: CS-1, CS-2, CS-3 and CS-4

  Maximum of four Rx time slots per frame

2G/3G/4G LTE

Transmitting Power

  Class 4 (33dBm±2dB) for GSM850

  Class 4 (33dBm±2dB) for EGSM900

  Class 1 (30dBm±2dB) for DCS1800

  Class 1 (30dBm±2dB) for PCS1900

  Class E2 (27dBm±3dB) for GSM850 8-PSK

  Class E2 (27dBm±3dB) for EGSM900 8-PSK

  Class E2 (26dBm±3dB) for DCS1800 8-PSK

  Class E2 (26dBm±3dB) for PCS1900 8-PSK

  Class 3 (24dBm+1/-3dB) for WCDMA bands

  Class 3 (23dBm±2dB) for LTE-FDD bands

  Class 3 (23dBm±2dB) for LTE-TDD bands

2G/3G/4G LTE

Sensitivity

LTE B1: -101.5dBm (10M) LTE B2: -101dBm (10M) LTE B3: -101.5dBm (10M) LTE B4: -101dBm (10M) LTE B5: -101dBm (10M) LTE B7: -99.5dBm (10M) LTE B8: -101dBm (10M) LTE B12: -101dBm (10M) LTE B13: -100dBm (10M) LTE B14: -99dBm (10M) LTE B18: -101.7dBm (10M) LTE B19: -101.4dBm (10M) LTE B20: -102.5dB (10M) LTE B26: -101.5dBm (10M) LTE B28: -102dBm (10M) LTE B38: -100dBm (10M) LTE B40: -100dBm (10M) LTE B41: -99dBm (10M) LTE B66: -99dBm (10M) LTE B71: -100dBm (10M) WCDMA B1: -110dBm WCDMA B2: -110dBm WCDMA B4: -110dBm WCDMA B5: -110.5dBm WCDMA B6: -110.5dBm WCDMA B8: -110.5dBm WCDMA B19: -110.5dBm GSM850: -109dBm EGSM900: -109dBm DCS1800: -109dBm PCS1900: -109dBm

Antennas

  2* 2 MIMO 4G LTE external antennas, standard SMA connectors with 50 Ω impedance.

  1* GPS antenna.(Optional).



SHAPE \* MERGEFORMAT

SHAPE \* MERGEFORMAT

SHAPE \* MERGEFORMAT

SHAPE \* MERGEFORMAT

GNSS/GPS (Optional)

GNSS features

  Gen8C Lite of Qualcomm

  Protocol: NMEA 0183

SIM card feature

SIM card

Supports 1* SIM slots, 1.8V / 3V . or 1* eSIM card. ( Optional )

SHAPE \* MERGEFORMAT

Hardware feature

CPU

MTK7628NN,575/580MHz ,MIPS 24KEc

MEMORY

FLASH 16MByte, DDR2 128MByte

Hardware interface

1* WAN/2* LAN 10/100Mbps fast Ethernet ports. 1*RS232 or 1*RS485 port.

Watchdog

Built-in watchdog feature.

Key button

Reset

Protection level

RS232/RS485,Ethernet port , Contact electric shock, +/-4KV, air discharge: +/-8KV.

LED status indicator

PWR ,SYS, Net, WAN, LAN,WLAN

Standard Power

Power supply input. DC 12V/1A

Power Supply

Power supply input. DC +6/2A~36V/0.5A, Default standard 1A/12V power adapter.

Peak current

Max current. 1A @12V

Working current

Max 160 mA,1.92W @12 V

Power Consumption

Idle. 36mA, 0.43W @12 V

Data link. Max 160 mA, 1.92W @12 V

Peak. Max 270mA , 3.24W @12V

Temperature

Operating Temperature -20 ºC ~+70ºC, Storage Temperature -30 ºC ~+75ºC

Environment humidty

5%~95% ,no condensation.

Ingress Protection

IP30

Housing

Aluminum black shell.

Dimensions

115mm * 73mm * 20mm

Installations

Wall mounted.

Weight

200g

Wi-Fi Optional

WLAN

  IEEE 802.11b/g/n.

  Supports 20MHz,40MHz channel bandwidth in 2.4GHz band.

  Max bandwidth 300Mbps in 2T/2R 2.4GHz band.

Wireless Mode

Access Point (AP), Client

Wireless Speed

300Mbps @2.4GHz.

Wireless Security

SHAPE \* MERGEFORMAT                                                                                                                                                                                                                                                                                                                                                                                                                                                                                        SHAPE \* MERGEFORMAT

Supports WPA, WPA2,WPAI, WEP, TKIP encryption.

Frequency Bands

2.4 GHz


WIFI transmit power

2.4GHz Tx power.

TX CCK, 11Mbps @ -20dBm HT20,MCS 7 @ -20dBm HT40,MCS 7 @ -17dBm

WIFI Rx Sensitivity

2.4GHz Rx sensitivity. 11Mbps:≤-90dBm. 54 Mbps:≤-72dBm.

HT20 MCS7:≤-69dBm.

HT40 MCS7:≤-66dBm

WIFI antenna

2*2 MIMO external antennas ,standard SMA connector with 50 Ω impedance.

WIFI hotspot sharing

Supports more than 30 users to share WIFI access to the Internet.

Software feature

Parameter settings

Supports automatic detection of MNC and MCC parameters of global operators. Built-in global operator APN, user name, password and other network parameters. At the same time, manual setting of network parameters is supported.

Dial method

After the device is powered on, the system automatically dials up to connect to the network.

Protocol

Supports PPTP,L2TP,IPSEC VPN,TCP,UDP,DHCP,HTTP,DDNS,TR-069,HTTPS,SSH,SNMP etc

protocol.

Routing

Supports static routing, multiple routing tables.

Bridge

Supports 4G bridge mode feature.

Multiple APN

Supports multiple APN access network.

System Assurance

Supports system automatic detection mechanism, automatic recovery of system abnormality or crash.

Data Link Assurance

SHAPE \* MERGEFORMAT

Built-in data link maintenance and self-recovery mechanism.

Firewall

Support flexible access control of TCP, UDP, ICMP packets.

Supports port Mapping, NAT etc feature.

DDNS

Supported some service providers, others can be configured manually.

Firmware update

Supports local WebUI and remote OTA update firmware.

VLAN

Supports VLAN feature.

Embedded system

SHAPE \* MERGEFORMAT

OpenWRT 18.06

Application development

Supports secondary development of application functions based on our device

motherboard software.

VPN

SHAPE \* MERGEFORMAT

VPN Feature

Supports OpenVPN, IPSEC VPN,PPTP,L2TP etc VPN feature.

MONITORING & MANAGEMENT

Web GUI

HTTP, Firmware Upgrade

Command Line Interface

SSHv2 ,telnet

Management platform

Remote Management Platform

Product features

◆       Wireless Mobile Broadband 2G/3G/4G LTE Connection. Supports 2G/3G/4G LTE global frequency bands.

◆       Supports 1 channel RS485 or RS232 for transparent IP packet transmission or data acquisition.

◆       Supports 1*WAN/2*LAN fast Ethernet ports to internet access.

◆       System crashes and automatically recovers. The system automatically maintains the data link and is permanently online.

◆       Supports Multiple VPN tunnels for data encryption .

Designed for industrial application scenarios.

◆       Power Input Range. DC +6V/2A to +36V/0.5A.

◆       Industrial design for harsh environment.

◆       Black aluminum alloy shell.

Easy to use and easy maintenance

◆       User friendly web interface for user interaction.

◆       Supports Remote Management Platform.

◆       Supports local web UI and remote FOTA update firmware.


Operating system

◆       Built-in OpenWRT 18.06 operating system. Supports user secondary application development.
