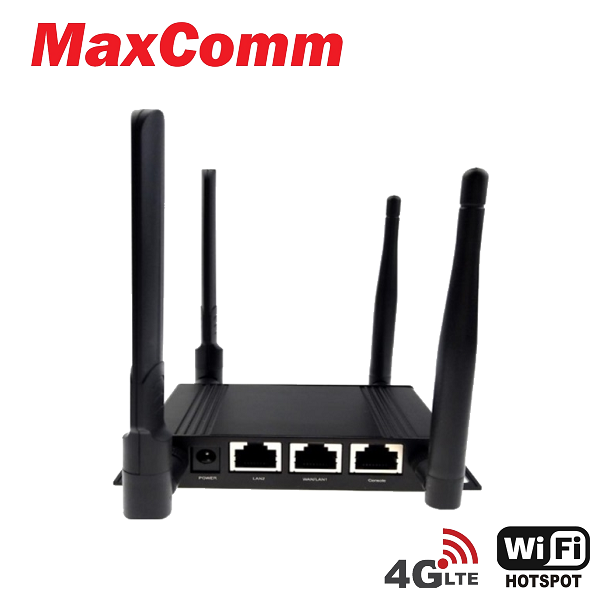

• MaxComm 4G LTE Industry Indoor Modem Router M-100

MaxComm 4G LTE Industry Indoor Modem Router M-100

MaxComm 4G LTE Industry Indoor Modem Router M-100.
Model : M-100

• 3G/4G LTE data transmission;

• Active auto connect;

• Embedded watchdog , Auto recovery;

• 2*2  4G/WIFI MIMO antenna;

• Integrate 3G/4G LTE,WIFI,GPS feature;

• 4G LTE. Support CAT 3, CAT 4, CAT 6 now.

• WIFI High quality performance without congestion;

• 1 WAN/1 LAN or 2 LAN ports, One console port;

• With SIM card slot;

• Wide power supply: +5V~+48V/1A

• Remote management platform;

• Firmware version: Linux or Openwrt;

• Small size dimension:115mm*73mm*20mm

Item

Product specification

CPU

MTK7628

MEMORY

FLASH 16MByte, DDR2 64MByte

Embedded system

Linux or Openwrt

Network

FDD LTE,TDD LTE,WCDMA,EVDO,GPRS,GSM,CDMA 1X

WIFI

WIFI 802.11 b/g/n, 300Mbps / Optional : WIFI 802.11 ac

Data rate

4G: CAT 3, DL 100bps , UL 50Mbps .   Or CAT 4 DL 150Mbps , UL 50Mbps .   CAT 6 ,DL 300Mbps , UL 50Mbps

WCDMA HSPA+: DL 42Mbps, UL 5.76Mbps

GPRS DL/UL 85.6Kbps

WIFI Tx Power

14 dBm(11g),17 dBm(11b),14dBm(11n)

WIFI Rx Sensitivity

<-70 dBm@54Mpbs

2G/3G/4G Transmitting Power

GSM/GPRS:

Class 4 (2W): GSM850、EGSM900

Class 1 (1W): DCS1800、PCS1900                                                                                                                          EDGE:

Class E2 (0.5W): GSM850、EGSM900

Class E1 (0.4W): DCS1800、PCS1900

UMTS:

Class 3 (0.25W): WCDMA

Class 3 (0.25W): CDMA2000

Class 2 (0.25W): TD-SCDMA

LTE:

Class 3 (0.25W)

GPS

GPS/GLONASS,Protocol: NMEA

WIFI Frequency

2.4GHz / Optional : 5GHz

2G/3G/4G  Frequency bands

Version CE.

LTE-FDD. B1,B3,B5,B8
        LTE-TDD.B38,B39,B40,B41
       WCDMA.900/2100MHz
       CDMA 1X/EVDO  BC0
       TDSCDMA. B34,B39
       GSM.900/1800MHz
Version E.
        LTE-FDD. B1,B3,B5,B7,B8,B20
        LTE-TDD.B38,B40,B41
       WCDMA. B1/B5/B8
       GSM.B3/B8
Version A.

LTE-FDD. B2,4,5,17
      WCDMA.850/1900MHz
Version SA.
        LTE-FDD. B1/B2/B3B4/B5/B7/B8/B28

        LTE-TDD .  B40
        UMTS/HSDPA/HSPA+  B1/B2/B5/B8

        GSM. B2/B3/B5/B8

Hardware interface

2*LAN 10/100Mbps, Console port(Be used as DTU, is available to connect serial devices)

RF connectors

SMA connector , 4G(female),WIFI(male),the characteristic impedance 50Ω

Security Encryption

Support WEP、WPA、WPA2 encryption ways

Protocol

PPTP,L2TP,IPSEC VPN,TCP,UDP, DHCP,HTTP,DDNS,TR-069,GRE, HTTPS, SSH,Open VPN,SNMP

LED Indicator

“SYS”, “Net”, “WAN”, “LAN”,RSSI

SIM/UIM

Standard draw card interface, support 1.8V/3V SIM/UIM card, built-in ESD protection

Key button

Reset

Standard Power

DC 12V/1A

Power Supply

DC 5~48V

Working current

2A (Max Current)

Temperature

Operating Temperature  -40~+75ºC

Storage Temperature  -45~+85ºC

Environment humidty

95%

Case

Aluminum Alloy Shell

Size

115mm*73mm*20mm

Weight

160g
