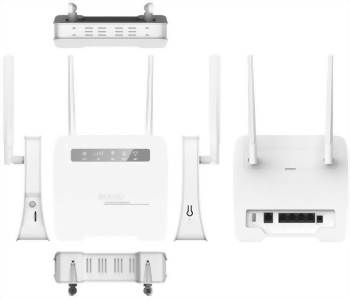

MaxComm 4G LTE Cat.6 CPE Router with Battery WR-132

Category

Feature & specification

Description

Basic Information

Model Name

WR-132

Form Factor

CPE

Dimension

about 175mm*280mm*52mm

Weight

About 330g

Color

White

Launch time(PP)

Mar.2020

ID&MD Model

ID

Air Interface

Technical Standard

Compatible with WCDMA, FDD-LTE

Frequency

LTE:B1/3/5/7/8/20/28/40 WCDMA:B1/8 GSM:900/2100

Can switch module to cover more frequencies combination

WIFI

2.4G&5GHz, WIFI 2*2 MIMO，802.11 a/b/g/n/ac

Performance

Maximum Data Throughput

LTE CAT 6

FDD-LTE(DL/UL) 300Mbps/50Mbps DC-HSPA+ (DL/UL) 42/5.76Mbps

Hardware

Receive Diversity

Support Receive Diversity

MIMO

Up to DL 4x4 MIMO

BB Chipset

Qualcomm MDM9x50

WiFi Chipset

AP: MTK7621+MT7613+MT7603

Memory

2Gb+2Gb

power consumption

<15W

Power Voltage

DC12V/1.5A

USIM/SIM

2FF SIM card

support SIM/USIM/UIM,standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card;internal

push-push SIM slot

LED

Power Indication LED，WAN Signal Strength， WiFi/WPS Indication LED， WAN/LAN Status LED，

Internet Status LED,

Antenna

2 internal WIFI antenna;2 internal LTE antenna;

2 external LTE antenna

Buttons

Power,Reset,WPS

Ethernet

1WAN+3LAN, 10BaseT/100Base/1000Base automatic adaptive port

USB

USB 2.0, Debug only

RJ11

RJ11x1

Reset

Pinhole

ESD

ESD Protection circuit；Contact±8KV、Air±10KV

Battery

Can Support if needed

Software

SW Update

TR069 & FOTA(customized) & Local

WIFI Mode

AP mode only

WIFI Security

OPEN & WPA-PSK& WPA2-PSK & WPA-PSK/WPA2-PSK;

SMS & Phone Book

Not Support by default, can be customized

UPnP

Need customize

Voice

VoLTE & CS Domain voice & VOIP

IPv4

Support IPv4

IPv6

Support IPv6

Firewall

Mac/IP address filter, Port forwarding, WiFi Black/Whilte list

Data Statistics

Support

VPN Pass Through

PP2P/L2TP/IPSec

SIM Lock

Support
