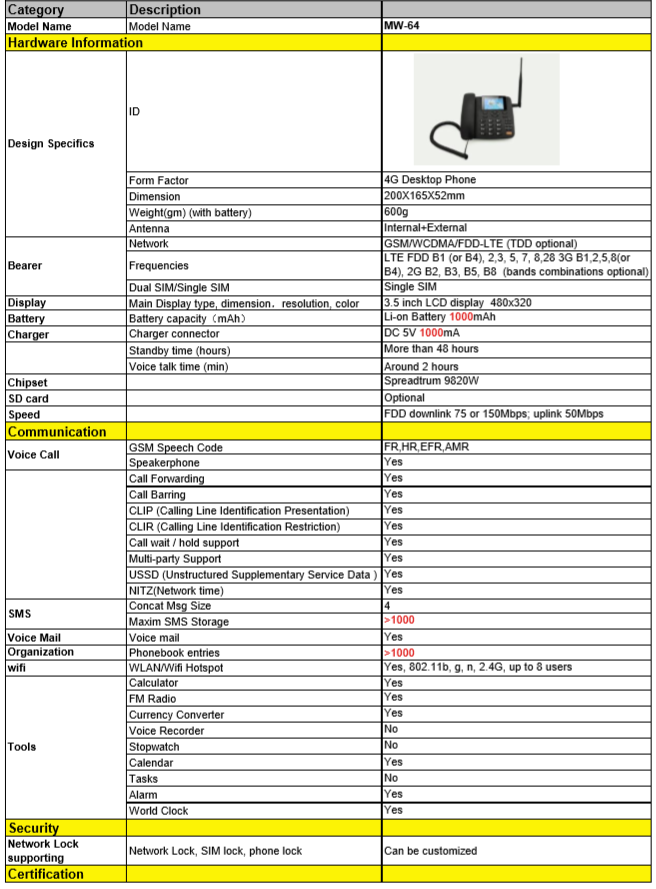

Category
|
Description
|
|
|
Model Name
|
Model
Name
|
MW-64
|
|
Hardware
Information
|
|
|
Design Specifics
|
ID
|
Bitmap
|
|
Form Factor
|
4G
Desktop Phone
|
|
Dimension
|
200X165X52mm
|
|
Weight(gm) (with battery)
|
600g
|
|
Antenna
|
Internal+External
|
|
Bearer
|
Network
|
GSM/WCDMA/FDD-LTE
(TDD optional)
|
|
Frequencies
|
LTE
FDD B1 (or B4), 2,3, 5, 7, 8,28 3G B1,2,5,8(or B4), 2G B2, B3, B5, B8 (bands combinations optional)
|
|
Dual SIM/Single SIM
|
Single
SIM
|
|
Display
|
Main
Display type, dimension，resolution,
color space
|
3.5
inch LCD display 480x320
Display color: 262K (Black & white display optional)
|
|
Battery
|
Battery
capacity（mAh）
|
Li-on
Battery 1000mAh
|
|
Charger
|
Charger
connector
|
DC
5V 1000mA
|
|
|
Standby
time (hours)
|
More
than 48 hours
|
|
Voice talk time (min)
|
Around
2 hours
|
|
Chipset
|
|
Spreadtrum
9820W
|
|
SD card
|
|
Optional
|
|
Speed
|
|
FDD
downlink 75 or 150Mbps; uplink 50Mbps
|
|
Communication
|
|
|
|
Voice Call
|
GSM
Speech Code
|
FR,HR,EFR,AMR
|
|
Speakerphone
|
Yes
|
|
|
Call
Forwarding
|
Yes
|
|
Call Barring
|
Yes
|
|
CLIP (Calling Line Identification Presentation)
|
Yes
|
|
CLIR (Calling Line Identification Restriction)
|
Yes
|
|
Call wait / hold support
|
Yes
|
|
Multi-party Support
|
Yes
|
|
USSD (Unstructured Supplementary Service Data )
|
Yes
|
|
NITZ(Network time)
|
Yes
|
|
SMS
|
Concat
Msg Size
|
4
|
|
Maxim SMS Storage
|
>1000
|
|
Voice Mail
|
Voice
mail
|
Yes
|
|
Organization
|
Phonebook
entries
|
>1000
|
|
wifi
|
WLAN/Wifi
Hotspot
|
Yes,
802.11b, g, n, 2.4G, up to 8 users
|
|
Tools
|
Calculator
|
Yes
|
|
FM Radio
|
Yes
|
|
Currency Converter
|
Yes
|
|
Voice Recorder
|
No
|
|
Stopwatch
|
No
|
|
Calendar
|
Yes
|
|
Tasks
|
No
|
|
Alarm
|
Yes
|
|
World Clock
|
Yes
|
|
Security
|
|
|
|
Network Lock supporting
|
Network
Lock, SIM lock, phone lock
|
Can
be cu
|
|
Certification
|
|
TBD
|
