- Public WiFi Hotspot pay terminal 2 in 1 Coin+Banknote WiFi

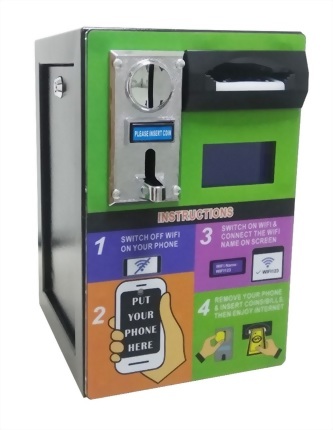

Coin/Banknote-Operated WiFi Vending Machine brings a brand-new vending business into public market.
It provides
visitors an immediate WiFi Internet hotspot service charged by time or traffic data.
Everyone has a smartphone, but not everywhere have
WiFi. WiFi Vending Machine can fill this
huge gap between
WiFi needs and WiFi coverage, and offer you a new way to gain revenue easily.
The machine is plug-&-play and easy to install. And the best part is all investment can be returned in 3 months.
- No inquiry, no username, and no password are required; just tap the phone, insert coins and/or banknotes, and get WiFi.
- Provide big WiFi signal range (around 100 meters for outdoor / 30 meters for indoor).
- Support around 50 concurrent users (depending on the bandwidth of Internet access) and optional high-end version can support up to 500 concurrent users.
- No need for supervision. Self-service working method to save labor cost.
- Provide user-friendly pop-up instruction page to tell end users how to get WiFi service.
- Offer cloud-based NMS (Network Management System) to monitor all online machines remotely.
- Support account roaming between different machines to help end users enjoy your WiFi service in multiple sites.
- Venue owners can get extra revenue by providing WiFi hotspot service and attract more visitors which is good for his original business;
- Venue owners can display advertisements for their products on the login page for better promotion, or show ads for other shops to get income;
- No WiFi squatter or hacker to stole Internet because no username and password is required.
- Travelers can get quick and cheap Internet access without paying expensive charge for data roaming or new SIM card;
- Visitors can check/send email, browse websites, and watch videos from any WiFi-enabled smart mobile phone, tablet, laptop, or handheld device.
Suited for indoor, outdoor or storefront public environment, such as:
- Long-stay place: dormitories, apartments, hotels, hospitals;
- Crowed public place: stations, food centers, restaurants, coffee shops, pubs, lounge bars, Karaoke bars, beauty salons, chain shops, lobby of banks/hotels;
- Sports area and recreation centers: bowling, billiards, swimming pools;
- Tourism place: international airports, beaches, parks, plazas, exhibition and convention sites.
|
Cellphone Charging Box |
|
|
|
- Can get extra income by selling power charging service - Input Voltage: AC100~240V 50/60Hz - Output Voltage: DC5V - Output Current: 2A - Charging Cable: 4 x 1 meter - Connector Type: IOS + Micro USB + Type C, 3 in 1 - Casing Material: ABS plastic - Dimensions: 222mm (L) x 146mm (W) x 56 mm (H) - Weight: 0.9 kg
|
|
|
|
|
Electronic Ticket Vending Function |
||
|
|
- Can be used to sell all kinds of ticket and recharge voucher (for example, recharging electricity meter, mobile airtime) - Requirement: you can get the list of tickets or voucher codes from the ticket supplier - The ticket/voucher code will be displayed on pop-up web page, and can be checked at a specific website |
|
|
|
||
|
|
- Add a new way to get revenue by sharing local videos based on time - Can save Internet bandwidth and provide high-speed video service - Built-in mini computer board with SDD hard disk of 120 GB to easily store big volume of videos |
|
|
|
||
|
|
- Can extend the wifi signal range to attract more users - Work in dual-band: 2.4 & 5 GHz - Support PoE in - Provided with waterproof casing and cable outlet (optional) - Shall connect to machine via Ethernet cable - Approximate extended range (* it will vary with actual installation environment): around 100 meters (outdoor) / 30 meters (indoor) - Dimensions: 190mm (H) x 100 mm (W) x 44mm (D) - Weight: 0.3 kg |
|
|
|
|
Environmental Conditions |
- Temperature: 5°C to 45°C (operation) / -10°C to 60°C (storage) - Humidity: 10% ~ 85% non-condensing - Shall work in bright environment |
|
Power Requirement |
- External adaptor (input: 100~240 VAC, 50/60 Hz / output: 12~24VDC, 0.8A) - Power consumption: 6 watts - Support solar power supply |
|
WiFi Operation Range |
Radius up to 100 meters (outdoor) / 30 meters (indoor) |
|
WiFi Frequency Range |
BAND 2.412 to 2.484 GHz and 5.150 to 5.875 GHz |
|
Supported 4G Frequency Bands (optional) |
LTE FDD: 700/800/850/900/1700/1800/1900/2100/2600MHz |
|
Supported Max. 4G Data Speed (optional) |
LTE FDD: Cat4 Download: 150Mbps / Upload: 50Mbps @20M BW |
|
Supported Device for Tapping |
Any WiFi-enabled mobile phone, tablet, laptop, PSP, PDA, etc. |
|
Networking |
- IEEE 802.11 b/g/n and 802.11 a/ac Wireless LAN - Zero end-user configurations |
|
Authentication |
Built-in user authentication and accounting |
|
Remote Management via NMS (optional) |
- Setting of WiFi name, WiFi service price, data speed limit - Revenue records of WiFi Internet service - Offer voucher codes for long-term wifi service - Supervision on running status of each machine |
|
About Coins |
- Coin Acceptance: 6 different types - Usable Coins: Diameter: 15mm ~ 29mm, Thickness: 1.8mm ~ 3.0mm - Coin Capacity: around 400 coins |
|
About Banknote Acceptor |
- Can accept most bills in the world - With LED at front to indicate status - Do not support giving changes |
|
Supported Language |
English and Spanish are available (other languages can be customized) |
|
Structural |
- Housing Material: steel plate - WAN Interface: 1x RJ45 port or 4G module (optional) - Antennas: 1x WiFi (internal, 2.4GHz+5GHz dual-band) or 1x 4G (external, optional) - Dimensions: 200mm (W) x 200mm (D) x 310mm (H) - Packing Dimensions: 260mm (W) x 260mm (D) X 370mm (H) - Net Weight: 5.5kg, Packing Weight: 6.2 kg |
|
Doc No.: SOL-Hotspot-Datasheet11122903 |
