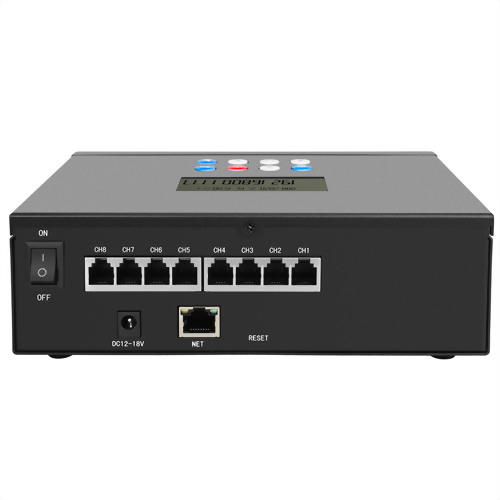

MaxComm 8.16.24.32.40.48.56.64CH Standalone P2P Cloud Network Voice Logger

Channel

8CH

(8108RHC

 8108THC)

16CH

(8116RHC

 8116THC)

24CH

(8124RHC

 8124THC)

32CH

(8132RHC

 8132THC)

40CH

(8140RHC

 8140THC)

48CH

(8148RHC

 8148THC)

56CH

(8156RHC

 8156THC)

64CH

(8164RHC

 8164THC)

Display

5-Inch Resistive Touch Screen and LED(Status Indication)

Storage Device

1TB Hard Disk

Recording Format

Wav / A Law

Recording Trigger Mode

Voltage/ Voice/ Hot key/Continuous REC

Off hook detect voltage

3-80V

On hook detect voltage

10-100V

Support CID

DTMF/FSK

CID detect intensity range

0 dB to –32dB

Recording Frequency range

0 Hz to 8000 Hz

Input impedance

AC： 100K，DC：5.1M

S/N ratio

＞60 dB

Signal-to-crosstalk ratio

＞70 dB

Input voltage

DC18V

Rating operating current

800MA

Maximum current

1000MA

Rating power consumption

18W or above

Operating Temperature

-20℃ to 60℃

Operating Humidity

10% to 90 %

Network interface

RJ-45

Accessory

Tee Connector & Cable, RJ11 & RJ45 Cable, Power Supply, Resistance Pen

Weight

10.5kgs(64CH)

Package L*W*H

53cm*37.5cm*19.5cm

Channel

1CH

(8101TSD

 8101THD)

2CH

(8102TSD

 8102THD)

4CH

(8104TSD

 8104THD)

8CH

(8108TSD

 8108THD)

8CH

(8108RSD

 8108RHD)

16CH

(8116RSD

 8116RHD)

Display

5-Inch Resistive Touch Screen and LED(Status Indication)

Storage Device

16GB SD Card or 1TB Hard Disk

Recording Format

Wav / A Law

Recording Trigger Mode

Voltage/ Voice/ Hot key/Continuous REC

Off hook detect voltage

3-80V

On hook detect voltage

10-100V

Support CID

DTMF/FSK

CID detect intensity range

0 dB to –32dB

Recording Frequency range

0 Hz to 8000 Hz

Input impedance

AC： 100K，DC：5.1M

S/N ratio

＞60 dB

Signal-to-crosstalk ratio

＞70 dB

Input voltage

DC12V

Rating operating current

800MA

Maximum current

1000MA

Rating power consumption

12W

Operating Temperature

-20℃ to 60℃

Operating Humidity

10% to 90 %

Network interface

RJ-45

Accessory

Tee Connector & Cable, RJ11 & RJ45 Cable, Power Supply, Resistance Pen

Weight

3.5kgs(8CH)

Package L*W*H

33cm*21cm*16cm
