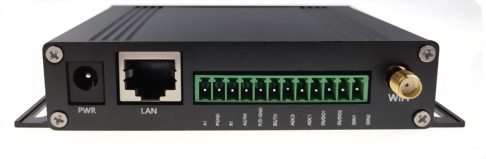

MaxComm 4G LTE Industry DTU Modem Router M103
• 2G/3G/4G LTE data transmission;
• Active auto connect;
•Built in watchdog and link maintenance mechanism,the system crashes self recovery,and keeps the device permanently online;
• 2*2 4G LTE antenna;
• Integrate 2G/3G/4G LTE feature;
• 4G LTE. Support CAT 4 now.
• 1 * LAN port.
•1*RS232/RS485,2*RS485, GPIOs (Digital or Analog), etc ;(Optional)
• WIFI/GPS ;(Optional)
• SD card storage;(Optional)
• Power failure alarm; (Optional)
• With one SIM card slot;
• Wide power supply: +6V/2.5A~+36V/0.5A;
• Working temperature: -40℃ ~ +80℃;
• Remote management platform;
• Operating system : Linux 3.18.20;
• Small size dimension:115mm*73mm*20mm
|
Item |
Product specification |
|
CPU |
Qualcomm MDM9X07, 1.2GHz, ARM Cortex A7 |
|
MEMORY |
FLASH 512MBytes, DDR2 256MBytes |
|
Embedded system |
Linux 3.18.20 |
|
Network |
FDD LTE,TDD LTE,WCDMA,EVDO,GPRS,GSM,CDMA 1X |
|
Data rate |
4G: CAT 4 DL 150Mbps , UL 50Mbps |
|
WCDMA HSPA+: DL 42Mbps, UL 5.76Mbps |
|
|
GPRS DL/UL 85.6Kbps |
|
|
WIFI Tx Power |
14 dBm（11g），17 dBm（11b），14dBm（11n） |
|
WIFI Rx Sensitivity |
<-70 dBm@54Mpbs |
|
2G/3G/4G Transmitting Power |
GSM/GPRS: Class 4 (2W): GSM850、EGSM900 Class 1 (1W): DCS1800、PCS1900 EDGE: Class E2 (0.5W): GSM850、EGSM900 Class E1 (0.4W): DCS1800、PCS1900 UMTS: Class 3 (0.25W): WCDMA Class 3 (0.25W): CDMA2000 Class 2 (0.25W): TD-SCDMA LTE: Class 3 (0.25W) |
|
GPS (Optional) |
GPS、 GLONASS、 BeiDou、Galileo 和 QZSS , Protocol: NMEA |
|
WIFI Frequency (Optional) |
2.4GHz, 802.11 b/g/n, 150Mbps,Wifi sharing for 10 users |
|
Item |
Product specification |
|
2G/3G/4G Frequency bands |
Version C.
LTE TDD: B38/B39/B40/B41 WCDMA: B1/B8 TD-SCDMA: B34/B39 CDMA: BC0 GSM: 900/1800MHz
LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8
LTE TDD: B40 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8 Remarks. We can customize products according to customer 4G LTE frequency requirements.
|
|
Item |
Product specification |
|
Hardware interface |
• 1*LAN 10M/100M/1Gbitbps, • 1*RS232 or RS485,1*RS485, GPIOs(4*Digital or 2*Analog) （Optional） |
|
RF connectors |
SMA connector , 4G(female),WIFI(male),the characteristic impedance 50Ω |
|
Security Encryption |
Support WEP、WPA、WPA2 encryption ways |
|
Protocol |
PPTP,L2TP,IPSEC VPN, GRE, Open VPN, HTTPS, SSH,SNMP,TCP,UDP, DHCP,HTTP,DDNS,TR-069,Modbus,MQTT,SSL,TLS etc. |
|
Support multiple inverter data acquisition |
Inverter brand: growatt、east、Ginlong Solis、saj、ceepower、Kstar、sungrow、 Invt、moso、huawei、Trannergy、afore、omnik、jingfuyuan |
|
Meter protocol |
Multi-function meter communication protocol：DL/T 645、DLMS |
|
LED Indicator |
“SYS”, “Net”, “LAN”，”WAN”,”RSSI” |
|
SIM/UIM |
Standard draw card interface, support 1.8V/3V SIM/UIM card, built-in ESD protection |
|
Key button |
Reset |
|
Standard Power |
DC +12V/1A |
|
Power Supply |
DC +6V/2.5A ~ +36V/0.5A |
|
Working current |
2A (Max Current) |
|
Temperature |
Operating Temperature -40ºC~+80ºC |
|
Storage Temperature -45ºC~+85ºC |
|
|
Environment humidty |
5%~95% |
|
Case |
Aluminum Alloy Shell |
|
Size |
115mm*73mm*20mm |
|
Weight |
160g |
